If you are shopping for Vinyl Flooring for your Cary home in 2026, you have probably noticed that every box has a confusing stack of numbers: total thickness, wear layer thickness, plank width, and something about mils. Most homeowners focus on the total thickness because bigger sounds better. But that is a mistake that can cost you hundreds of dollars and leave you with floors that dent, peel, or warp inside of three years. The real number that matters for vinyl flooring is the wear layer thickness, and the right choice depends heavily on Cary's specific climate, your subfloor condition, and how much actual foot traffic each room sees. Here is exactly how to decode those numbers and pick the right vinyl flooring for every room in your house.
Why Vinyl Flooring Thickness Matters for Cary's Climate in 2026
Cary sits in McHenry County, which means we get the full Midwestern swing: humid summers that push indoor moisture levels above 60 percent, freezing winters that drop to negative temperatures, and spring thaws that test every subfloor in town. Vinyl flooring handles moisture better than hardwood or laminate, but only if you choose the right thickness for the conditions.
The total thickness of a vinyl plank or tile ranges from 2mm to 8mm. Thicker planks (5mm and up) are more rigid and do a better job of hiding minor subfloor imperfections. Thinner planks (2mm to 4mm) flex more and telegraph every bump and dip. In Cary's climate, where concrete slabs in basements and crawl spaces can shift slightly with freeze-thaw cycles, a thicker plank gives you a safety margin. But here is the catch: if your subfloor is already level and smooth, a thick plank is overkill and you are paying for material you do not need.
The real climate concern is the wear layer. That is the clear top coat that protects the design layer from scratches, stains, and UV damage. In Cary's sunny rooms, especially south-facing kitchens and sunrooms, a wear layer under 12 mil will show fading within two years. In basements that stay cool and dark, you can get away with 6 mil. The wear layer is measured in mils (thousandths of an inch), not millimeters. A 20 mil wear layer is roughly the thickness of a credit card. That is the minimum we recommend for any room that sees daily use in Cary.
Vinyl Flooring Thickness Comparison: Wear Layer vs. Total Thickness
Think of vinyl flooring like a sandwich. The total thickness includes the backing layer, the core (which can be rigid or flexible), the printed design layer, and the wear layer on top. The wear layer is the part that takes the abuse. Everything else is just structure.
Here is the quick breakdown of what each thickness range delivers in real world use:
- 2mm to 3mm total thickness with 4 to 6 mil wear layer: This is builder grade material. It works in low traffic guest bedrooms or closets that see maybe one person per day. It will not survive a family with kids, pets, or kitchen spills. Expect visible wear within 18 months.
- 4mm to 5mm total thickness with 12 to 20 mil wear layer: This is the sweet spot for most Cary homes. It handles daily foot traffic, resists scratches from dog nails and dropped utensils, and the thicker core bridges small subfloor gaps. This is what we install in 80 percent of the rooms we do at Burns Carpentry.
- 6mm to 8mm total thickness with 20 to 30 mil wear layer: This is commercial grade luxury vinyl plank. It is overkill for a bedroom but makes sense in a high traffic mudroom, a home gym with heavy equipment, or a kitchen that sees serious cooking. The extra thickness also helps with sound dampening if you have a second floor.
The common mistake is pairing a thick total plank with a thin wear layer. Some manufacturers sell 7mm planks with only 6 mil wear layers. That thick core feels substantial in the box, but the surface will scratch and stain just as fast as a 2mm plank. Always check the wear layer number first, then consider total thickness. The wear layer determines durability. Total thickness determines how the floor feels underfoot and how well it hides subfloor flaws.
How to Choose the Right Thickness for Each Room in Your Cary Home
Every room in your house has different demands. Here is a room by room guide based on what we see in Cary homes, from basements to second floor bathrooms.

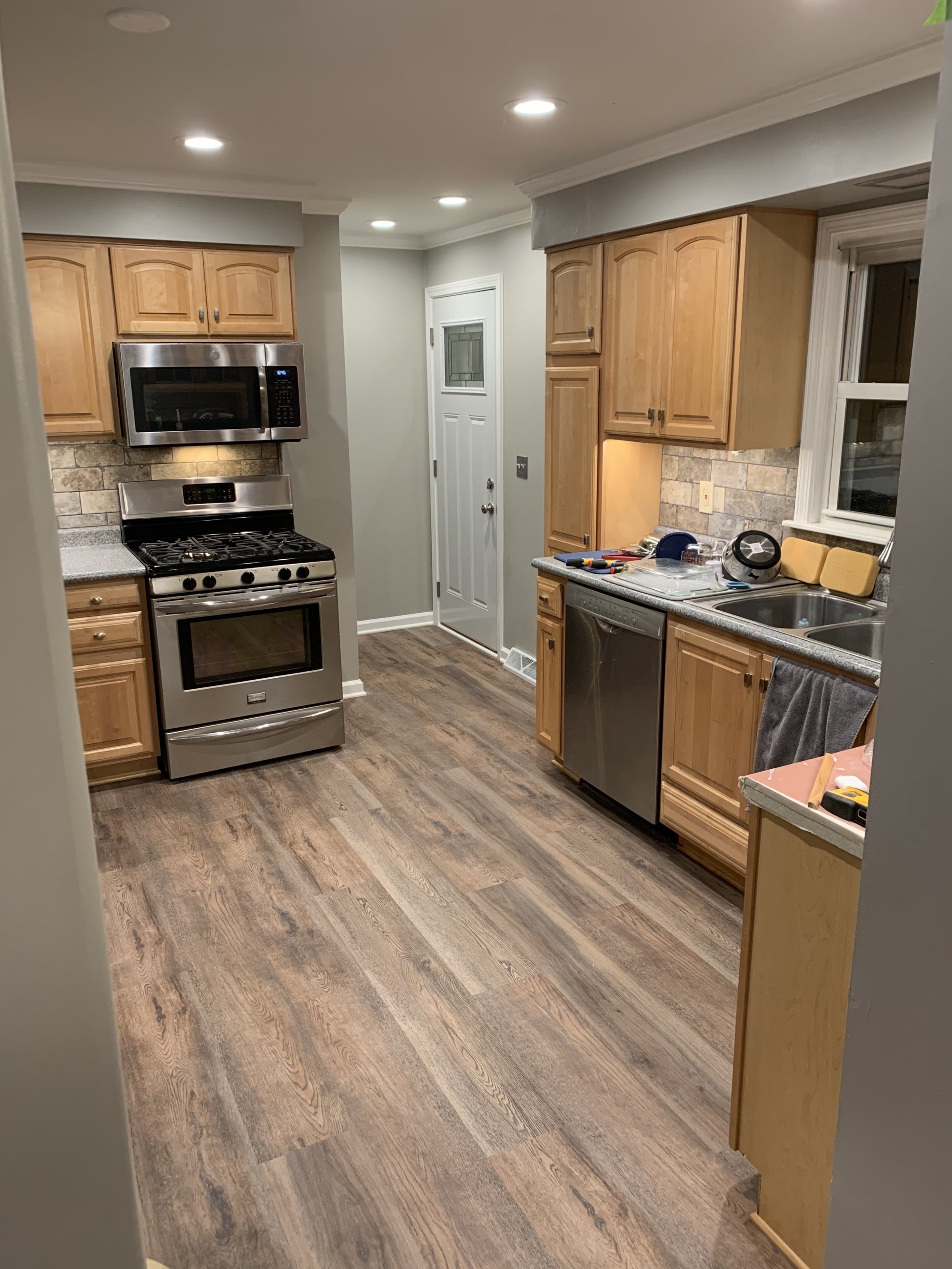

Kitchens
Kitchens get dropped knives, spilled wine, rolling chairs, and heavy foot traffic. Go with a 5mm to 6mm plank and a minimum 20 mil wear layer. If you have a large island or breakfast bar where stools slide in and out, look for a 30 mil wear layer. That extra 10 mils adds about 5 to 7 years to the floor's appearance before you start seeing scuff marks that won't wipe off.
Basements
Cary basements are notorious for moisture. Even with a good sump pump, the concrete slab stays cool and can sweat during summer. You want a rigid core vinyl plank that is at least 5mm thick with a 12 to 20 mil wear layer. Rigid core planks have a stone plastic composite (SPC) or wood plastic composite (WPC) core that resists expansion and contraction better than flexible vinyl. The total thickness matters here because a thicker rigid core insulates the floor from the cold concrete, making the room feel warmer underfoot.
Bathrooms
Bathrooms are small spaces with high humidity and occasional standing water. A 4mm to 5mm plank with a 12 to 20 mil wear layer is fine. The key is making sure the wear layer has a textured finish, not a high gloss. Glossy vinyl shows every water spot and soap residue. A matte or textured finish hides the daily wear and looks cleaner longer.
Living Rooms and Bedrooms
These rooms get moderate foot traffic. A 4mm plank with a 12 mil wear layer works perfectly. You do not need to spend extra on commercial grade material here. The one exception is if you have a large dog that runs through the house. In that case, bump up to a 20 mil wear layer to prevent claw scratches.
Mudrooms and Entryways
These are the hardest working floors in your home. They get wet boots, gravel, salt from winter sidewalks, and heavy traffic. Use a 6mm rigid core plank with a 30 mil wear layer. This is the only room where we recommend going to the top end of the thickness range. The extra cost is worth it because you will not need to replace the floor in five years.
Top Vinyl Flooring Thickness Recommendations for Subfloor Types in Cary
Your subfloor condition determines how thick your vinyl needs to be more than any other factor. Here is what works for the three most common subfloor types in Cary homes.
Concrete Slab (Basements and first floor on grade): Concrete slabs in Cary are typically 4 inches thick and poured over gravel. They settle over time and develop hairline cracks and slight unevenness. For a concrete slab, use a minimum 5mm rigid core vinyl plank. The rigid core bridges small cracks and dips up to 1/8 inch. If your slab has larger imperfections, you need to level it first with a self leveling underlayment before installing any vinyl. Skipping that step guarantees you will see those imperfections through the floor within six months.
Plywood Subfloor (Second floors and framed first floors): Plywood subfloors are usually 3/4 inch thick and can have slight deflection between joists. A 4mm to 5mm flexible vinyl plank works well here. The slight flexibility allows the floor to move with the subfloor without cracking. You do not need rigid core on plywood unless you want extra sound dampening. If you are installing vinyl over an older plywood subfloor, check for loose boards and screw them down before installation. A single squeaky board under vinyl will drive you crazy because you cannot fix it without pulling up the floor.
Existing Tile or Sheet Vinyl: You can install new vinyl over old tile or sheet vinyl as long as the existing floor is flat and firmly attached. Use a 5mm or thicker plank to prevent telegraphing the pattern of the old floor through the new one. If the old floor has any loose tiles or bubbles, remove them and patch the area before installing. This is one of those jobs where a professional floor installation from Burns Carpentry saves you from a frustrating weekend project that ends with a lumpy floor.
5 Common Thickness Mistakes Cary Homeowners Make and How to Avoid Them
- Buying the thickest plank because it seems durable. Thick planks are expensive and heavy. If your subfloor is already flat and level, a 4mm plank with a 20 mil wear layer gives you the same durability as an 8mm plank for half the price. Pay for wear layer, not core thickness.
- Ignoring the wear layer number entirely. This is the most common error. Homeowners look at total thickness and assume thicker equals better. A 2mm plank with a 20 mil wear layer will outlast a 6mm plank with a 6 mil wear layer by years. Always check the wear layer first.
- Using thin vinyl in a basement without a moisture test. Cary basements can have moisture vapor emission rates above 5 pounds per 1,000 square feet in 24 hours. Thin vinyl planks (under 5mm) do not have enough structure to resist curling when moisture hits them from below. Do a moisture test with a calcium chloride kit before you buy anything.
- Installing rigid core vinyl over an uneven subfloor without leveling. Rigid core planks do not flex. If your subfloor has a dip of 1/4 inch or more, that rigid plank will rock or crack. Self leveling compound costs about $30 to $50 per bag and covers roughly 50 square feet at 1/8 inch thickness. It is cheap insurance against a floor that clicks and wobbles.
- Choosing a glossy wear layer for high traffic areas. Glossy finishes show every scratch, footprint, and dust particle. In Cary's climate, where you track in dirt and salt for half the year, a matte or textured finish hides wear much better. It also provides better slip resistance, which matters in kitchens and bathrooms.
Frequently Asked Questions
What is the best vinyl flooring thickness for a basement in Cary?
For a Cary basement, use a rigid core vinyl plank that is at least 5mm thick with a 12 to 20 mil wear layer. The rigid core resists moisture and temperature changes better than flexible vinyl, and the thickness helps insulate the floor from cold concrete. Always test your slab for moisture before buying.
How long does vinyl flooring last with a 20 mil wear layer?
With a 20 mil wear layer and normal household traffic, expect the floor to look good for 15 to 20 years. In high traffic areas like entryways and kitchens, you might see light scuffing around year 12. A 12 mil wear layer lasts about 8 to 12 years in the same conditions.
Can I install thin vinyl plank over existing tile?
Yes, but only if the existing tile is flat and firmly attached. Use a 5mm or thicker plank to prevent the tile grout lines from showing through. If any tiles are loose or cracked, remove them and fill the gap with a patch compound before installing the new floor.
Does vinyl flooring thickness affect the installation cost?
Not significantly. The labor cost to install vinyl flooring is roughly the same regardless of thickness, usually $2 to $4 per square foot in the Cary area. The material cost changes more, with thicker planks running $3 to $7 per square foot versus $2 to $4 for thinner planks. Your total project cost depends more on the room size and subfloor prep than the plank thickness.
If you are ready to pick the right vinyl flooring for your Cary home but do not want to guess at thickness numbers and wear layers, call Burns Carpentry. We handle Flooring Installation for homes across Cary, Arlington Heights, Aurora, Elgin, and the surrounding areas. We will come to your house, check your subfloor, measure your room conditions, and tell you exactly what thickness and wear layer makes sense for your budget. No pressure. Just straight advice from people who do this every day.
